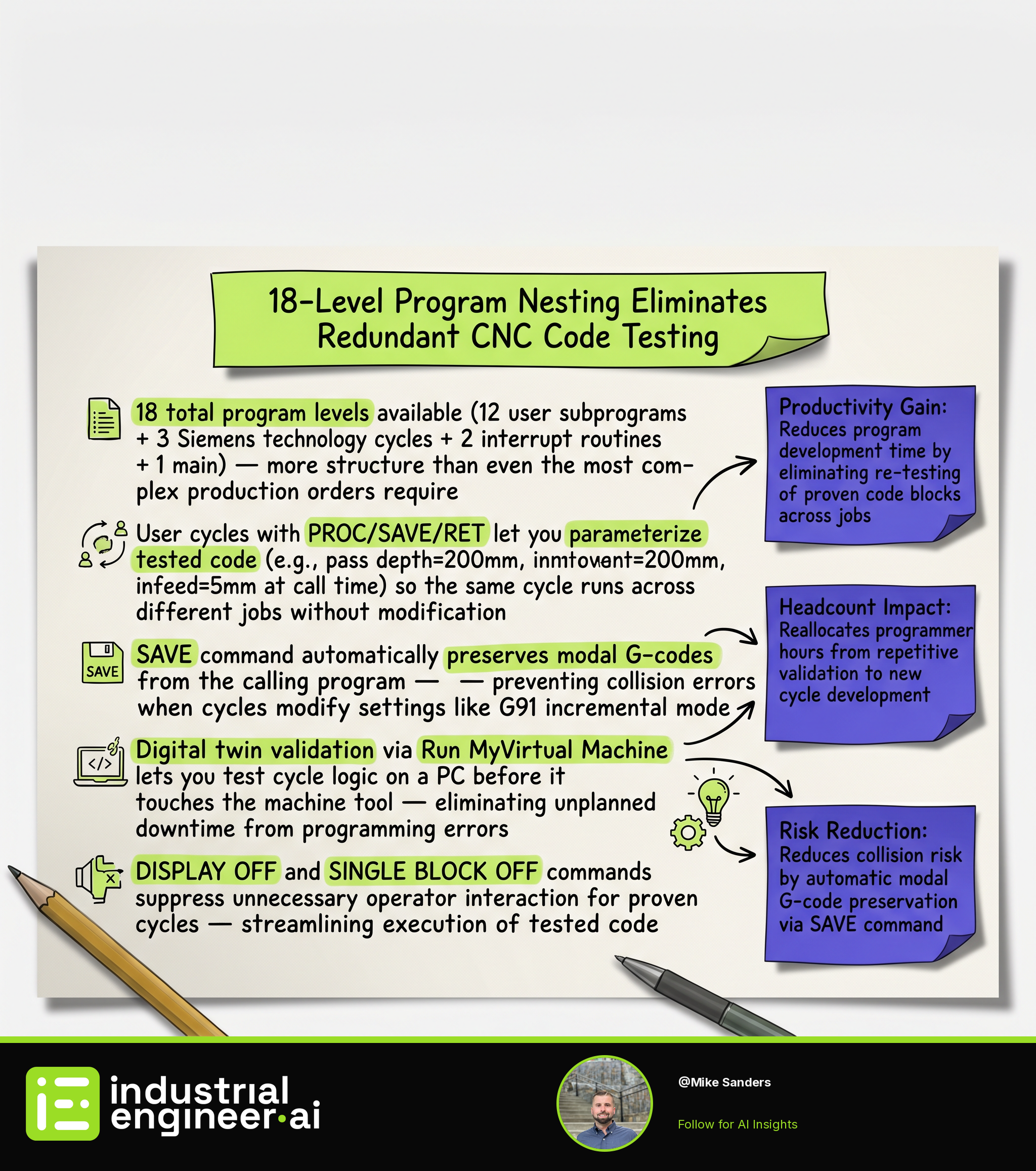

18-Level Program Nesting Eliminates Redundant CNC Code Testing
SINUMERIK's 18-level program nesting structure exists to eliminate redundant code validation — yet most shops write linear G-code that forces re-testing on every job. By building parameterized user cycles with PROC, SAVE, and RET commands, then validating them once on a digital twin like Run MyVirtual Machine, you convert programming hours into reusable assets that deploy across jobs without modification.
“We see this pattern constantly: shops with $500K machines running linear code that gets re-validated every job. The capability for modular, reusable programming exists in the control — the gap is programming discipline and digital twin adoption.”
SINUMERIK's 18-level program nesting structure exists to eliminate redundant code validation — yet most shops write linear G-code that forces re-testing on every job. By building parameterized user cycles with PROC, SAVE, and RET commands, then validating them once on a digital twin like Run MyVirtual Machine, you convert programming hours into reusable assets that deploy across jobs without modification.
From the Source
"A cycle is nothing more than a subprogram with parameter transfer. This way, cycles do not have to be constantly adapted, making their management more flexible. Tested code in these program sequences does not need to be accessible to everyone in the program manager."
— SINUMERIK live #16.5 - La programmazione flessibile
Key Takeaways
- 0118 total program levels available (12 user subprograms + 3 Siemens technology cycles + 2 interrupt routines + 1 main) — more structure than even the most complex production orders require
- 02User cycles with PROC/SAVE/RET let you parameterize tested code (e.g., pass depth=200mm, infeed=5mm at call time) so the same cycle runs across different jobs without modification
- 03SAVE command automatically preserves modal G-codes from the calling program — preventing collision errors when cycles modify settings like G91 incremental mode
- 04Digital twin validation via Run MyVirtual Machine lets you test cycle logic on a PC before it touches the machine tool — eliminating unplanned downtime from programming errors
- 05DISPLAY OFF and SINGLE BLOCK OFF commands suppress unnecessary operator interaction for proven cycles — streamlining execution of tested code
Watch the Source
SINUMERIK live #16.5 - La programmazione flessibile
Source
SINUMERIK live #16.5 - La programmazione flessibile
Video embedded above — watch without leaving the site
Extracted and verified via Adversarial AI Pipeline
